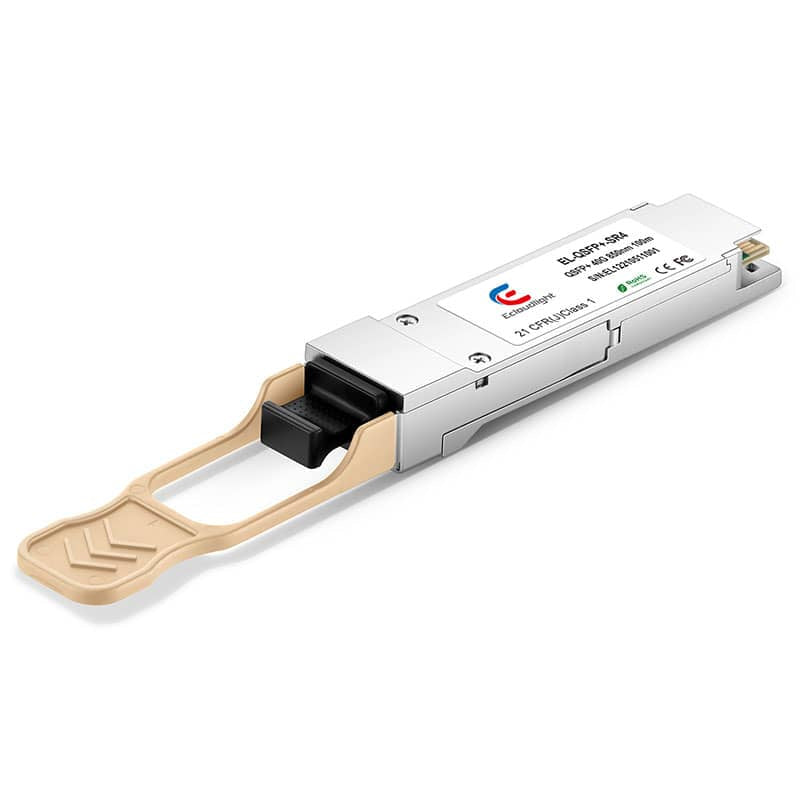

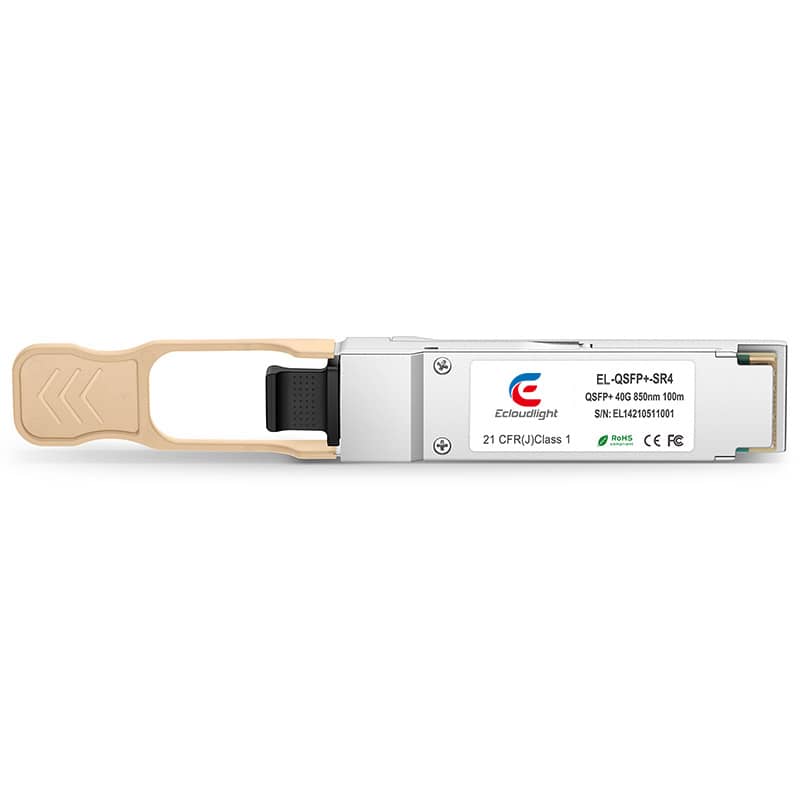

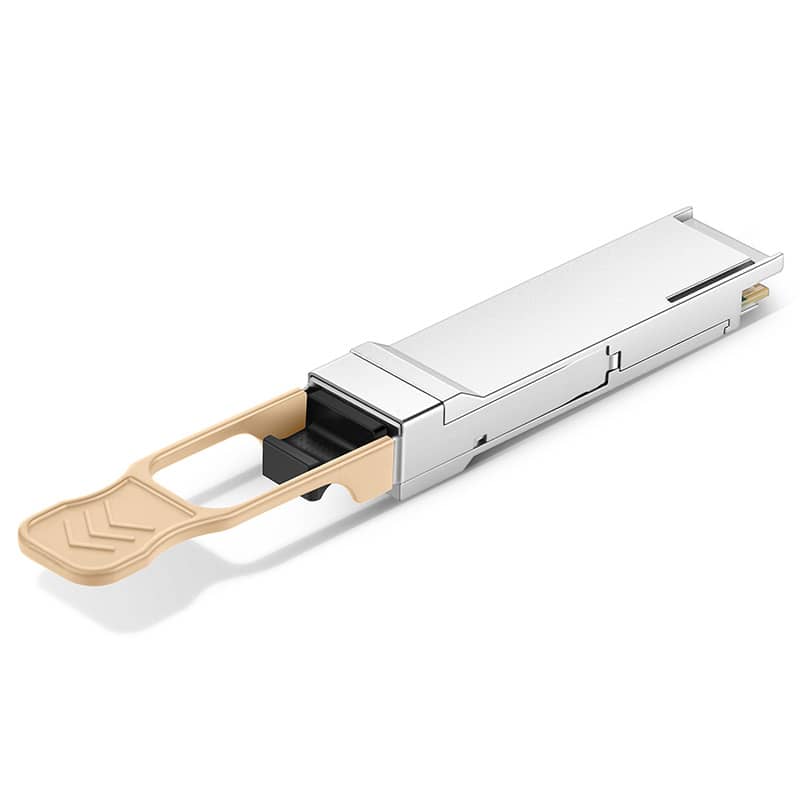

Avago AFBR-79EQPZ Compatible 40GBASE-SR4 QSFP+ 850nm 150m DOM MTP/MPO MMF Optical Transceiver Module
Free Shipping
Free standard shipping on orders over $199
Estimated to be delivered in 5 business days
Avago AFBR-79EQPZ Compatible 40GBASE-SR4 QSFP+ Optical Transceiver Module (MMF, 850nm, 150m, MTP/MPO, DDM)
Specification
| Model Name | QSFP-40G-SR4 | Vendor Name |
Ecloudlight |
|---|---|---|---|
| Form Factor | QSFP+ | Data Rate | 40 Gbps |
| Wavelength | 850nm | Distance | 150m@OM4/100m@OM3 |
| Connector | MTP/MTO-12 Male | Cable Type | OM4/OM3 MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -7~1dBm | Receiver Sensitivity | <-9.5dBm |
| Power Consumption | <0.7W | Modulation Format | NRZ |
| DDM | Support | Bit Error Ratio (BER) | 1E-12 |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636, Infiniband 40G QDR | Warranty | 3 Years |
Product Description
40 Gbps Ethernet High-density transmission best choice for Data Center and enterprise core layer

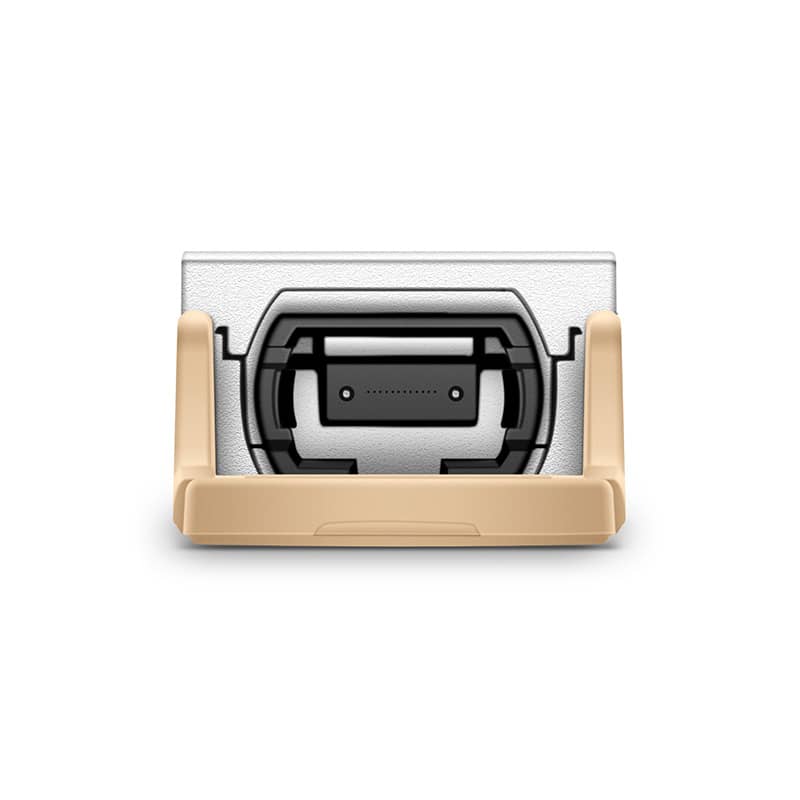

The QSFP-40G-SR4 transceiver supports a link length of up to 100 meters on multimode fiber @OM4 at 850nm wavelength. It is adapted with an MTP/MPO-12 connector. This means it has 4 TX lasers and 4 RX receivers inside, corresponding to the 8 fibers in the MTP-12.
40G QSFP+ SR4 transceiver is suitable for distribution layer and core layer connections. For instance, 40G to 4x10G breakout connection by 10GBASE-SR/CSR transceivers and MTP-LC Break-out cable.
- Cost-effective choice for data center interconnection.
- Fully compatible with Cisco devices.
- Low power consumption < 0.7W.
- Ultra-high-density transmission, lower cost of data transmission per GB
