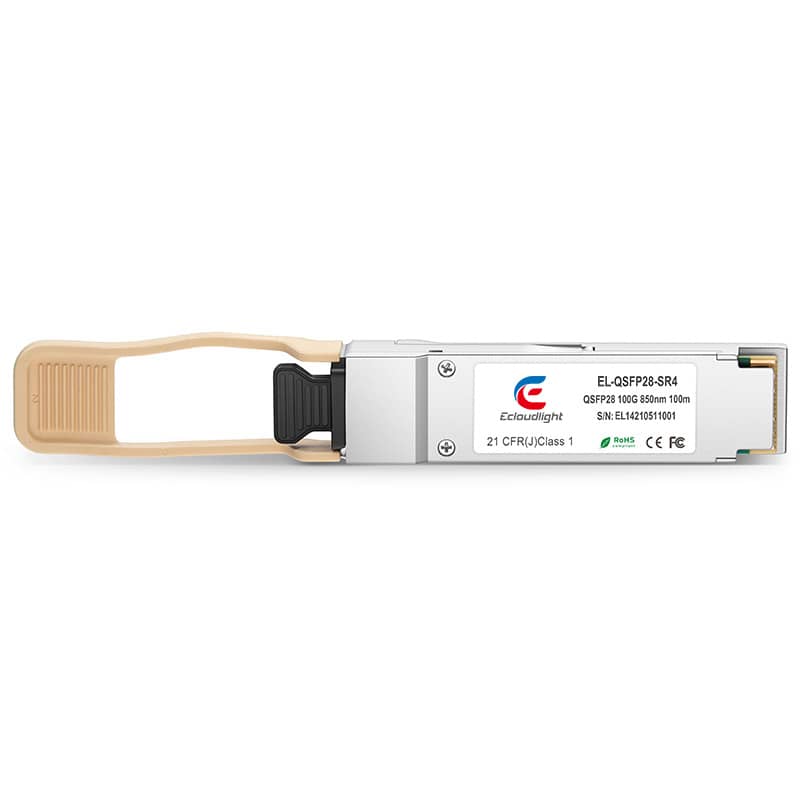

Juniper Networks JNP-QSFP-100G-SR4 100GBASE-SR4 100m 100G QSFP28 SR4 Transceiver Module
Free Shipping
Free standard shipping on orders over $199
Estimated to be delivered in 5 business days
Juniper Networks JNP-QSFP-100G-SR4 Compatible 100GBASE-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DDM)
Specification
| Part Number: | JNP-QSFP-100G-SR4 | Vendor Name: | Ecloudlight |
|---|---|---|---|
| Form Factor: | QSFP28 | Data Rate: | 100Gbps |
| Wavelength: | 850nm | Distance: | 100m@OM4/70m@OM3 |
| Connector: | MTP/MPO-12 Male | Cable Type: | OM4/OM3 MMF |
| Transmitter: | VCSEL 850nm | Receiver Type: | PIN |
| TX Power: | -8.4~2.4dBm | Receiver Sensitivity: | <-10.3dBm |
| Power Consumption: | P≤1.8W | Modulation Format: | NRZ |
| DDM: | Support | Bit Error Ratio (BER): | 1.00E-12 |
| Protocols: | EEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI | Warranty: | 3 Years |
Product Description
Best Choice for Core layer to Distribution layer switches and Data Center 100G ethernet connection
The 100GBASE-SR4 transceiver is designed for providing a 100 Gbit/s connection over an MMF fiber optic cable in a distance of over 100m via OM4, and 70m via OM3. This 100G SR4 module has four 25G lane parallel transmissions, and the center wavelength of each channel is 850nm. It can be used for the connection from the core layer of the enterprise network to the distribution layer, and 100GBASE-SR4 can connect four 25G SR signals. The QSFP28-100G-SR4 optical module is also available for DOM which provides real-time monitoring and diagnostics.
- 1. 100G MTP/MPO-12 Connector provide high-density connections
- 2. IEEE 802.3bm Electrical Interface; Power Consumption ≤1.8W
- 3. Hot Pluggable QSFP28 MSA Compliant
- 4. VASEL+PIN for Campus Network, Data Center interconnect, and Enterprise Core Layer
- 5. Compliant with High-Level FDA Laser Safe
