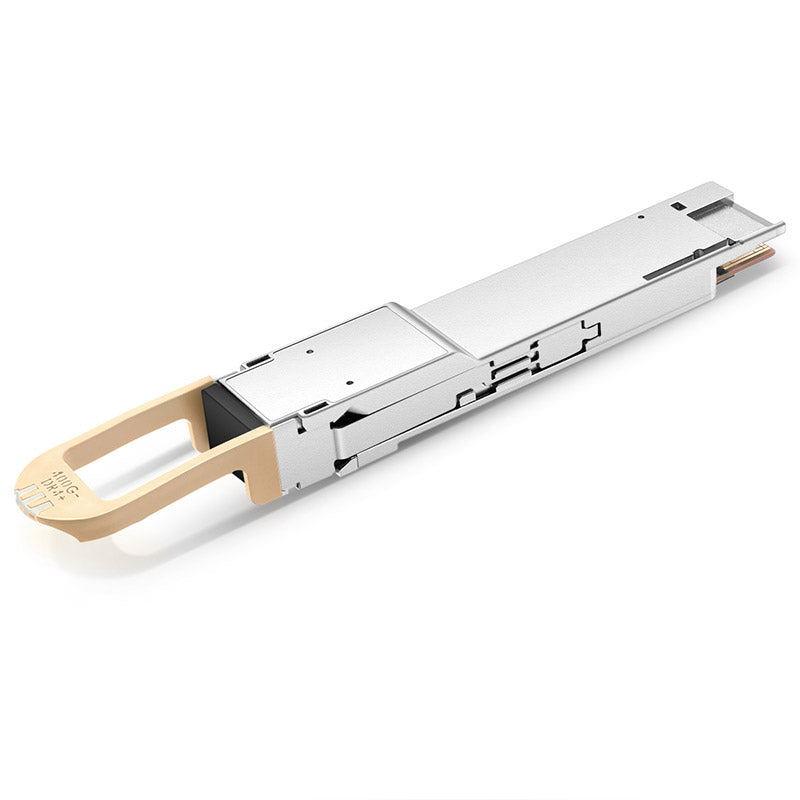

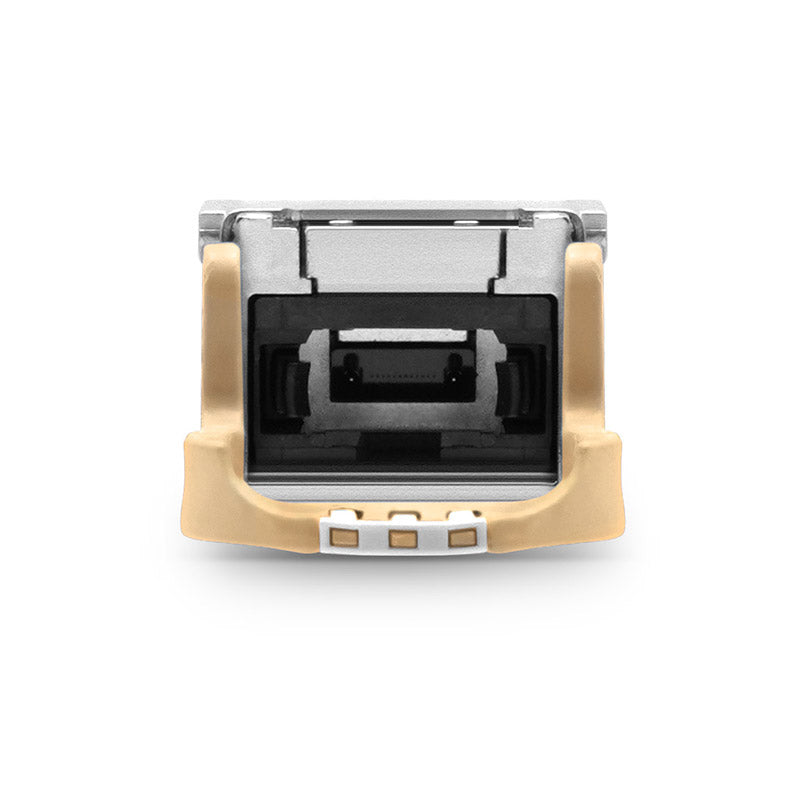

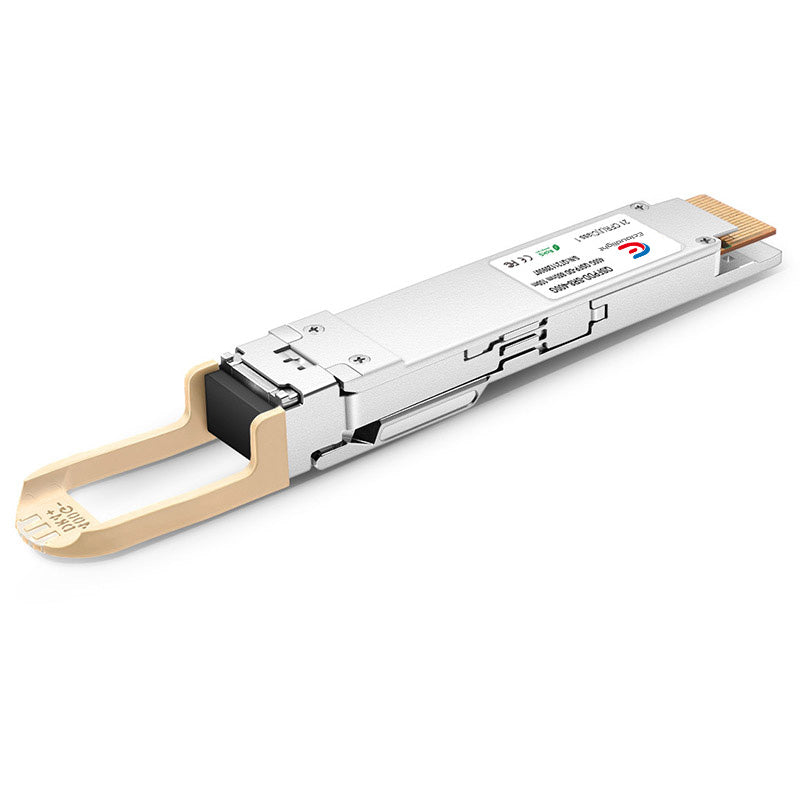

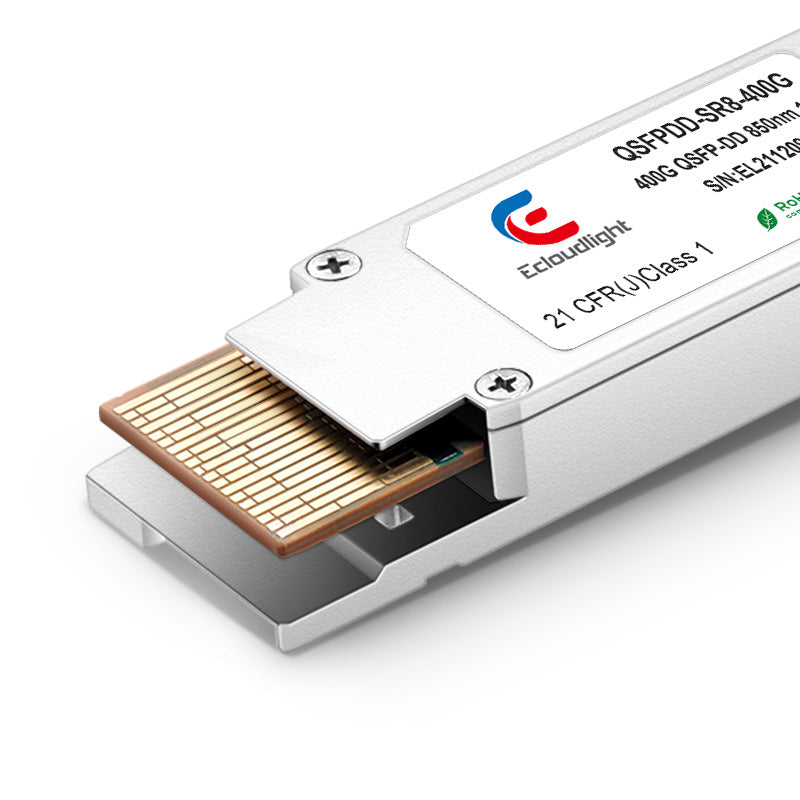

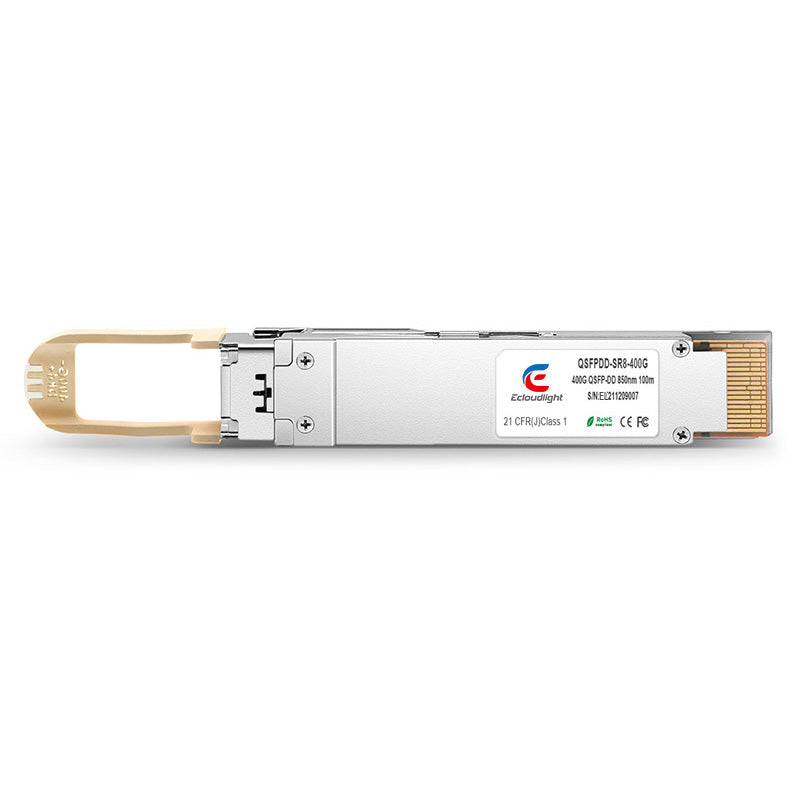

Cisco QSFPDD-SR8-400G Compatible 400GBASE-SR8 QSFP-DD 850nm 100m DOM MTP/MPO-16 MMF Transceiver
Kostenloser Versand
Kostenloser Standardversand bei Bestellungen über 499 $
Geschätzte Lieferung in 5 Werktagen
Cisco QSFPDD-SR8-400G Compatible 400GBASE-SR8 QSFP-DD 850nm 100m is perfect for those in need of high speed and long hual Ethernet connectivity. This module supports link lengths of up to 100m over multimode fiber (MMF) with MTP/MPO-16 connectors and is compliant with both IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standards. In addition, the 400 Gigabit Ethernet signal is carried over 8 wavelengths, with multiplexing and demultiplexing managed within the device. As a result, this Cisco optical transceiver is an excellent choice for data center links requiring fast, reliable connection speeds.
Specification
| Model Name | QSFPDD-SR8-400G | Vendor Name |
Ecloudlight |
|---|---|---|---|
| Form Factor | QSFP-DD | Data Rate | 400 Gbps |
| Wavelength | 850nm | Distance | 100m@OM4/70m@OM3 |
| Connector | MTP/MTO-12 Male | Cable Type | OM4/OM3 MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -6~3dBm | Receiver Sensitivity | <-7.9dBm |
| Power Consumption | <10W | Modulation Format | NRZ |
| DDM | Support | Bit Error Ratio (BER) | 1E-12 |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636, Infiniband 40G QDR | Warranty | 3 Years |
